YooYoun Korea Valve

Maker: Yooyoun/ Korea Model: RGP-1F Primary regulating valve, Piston type Material: ductile iron (op: SS304, SS316, cast steel) Inlet pressure: 10 bar, 20bar

Maker: Yooyoun/ Korea Model: RGD-1F Primary regulating valve, Diaphragm type Material: ductile iron (op: SS304, SS316, cast steel) Inlet pressure: 10 bar, 20bar

Maker: Yooyoun/ Hàn Quốc Model: RDD-3F Direct acting type Materials: cast steel  Inlet pressure: 30bar  Outlet pressure: 0,35 ~ 10bar  Temperaure: 80°C

Maker: Yooyoun/ Hàn Quốc Model: RDD-1F / RDD-2F Direct acting type Materials: Ductile iron (RDD-1F); cast steel (RDD-2F) Inlet pressure: 10bar và 20bar

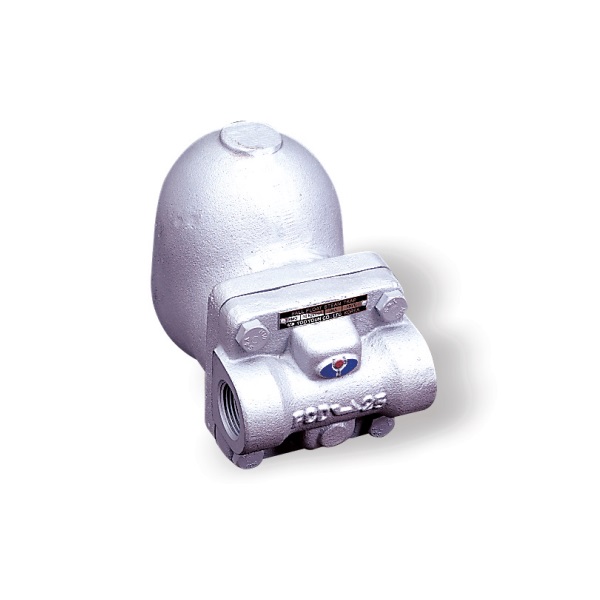

Maker: Yooyoun/ Korea Model: TFT-1S Material: Ductile iron Pressure: 4.5 bar, 10 bar, 14 bar Temperature: 220°C Connection: PT Screwed  Size:

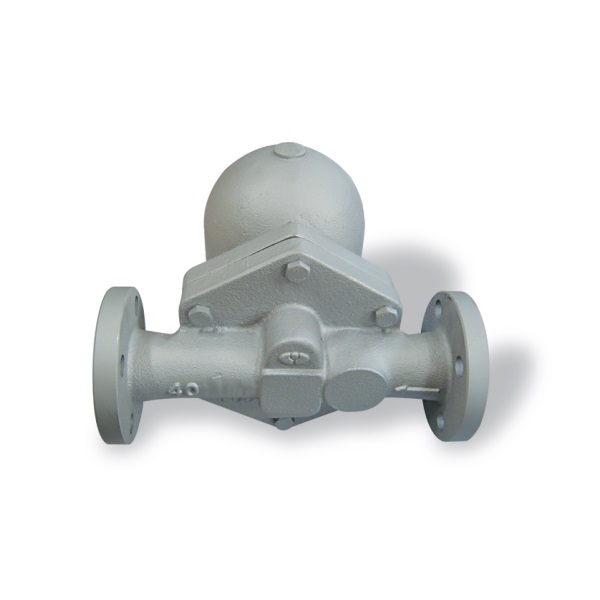

Maker: Yooyoun/ Korea Model: TFT-1F Material: Ductile iron Pressure: 4.5 bar, 10 bar, 14 bar Temperature: 220°C Connection: JIS 10K Flange Size:

Maker: Yooyoun/ Korea Model: SFL-1S Material: Cast bronze Pressure: 0,35 ~ 11bar Temperature: 220°C Connection: PT Screwed  Size: DN15 ~ DN50

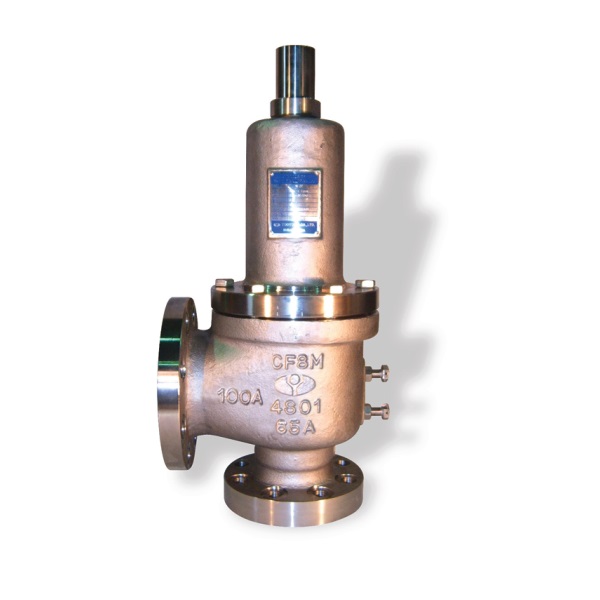

Maker: Yooyoun/ Korea Model: SFF-3F Material: A216 wcb, cast steel Pressure: 22 ~ 33bar Temperature: 250°C Connection: JIS 30K, CL150 (#150), CL 300

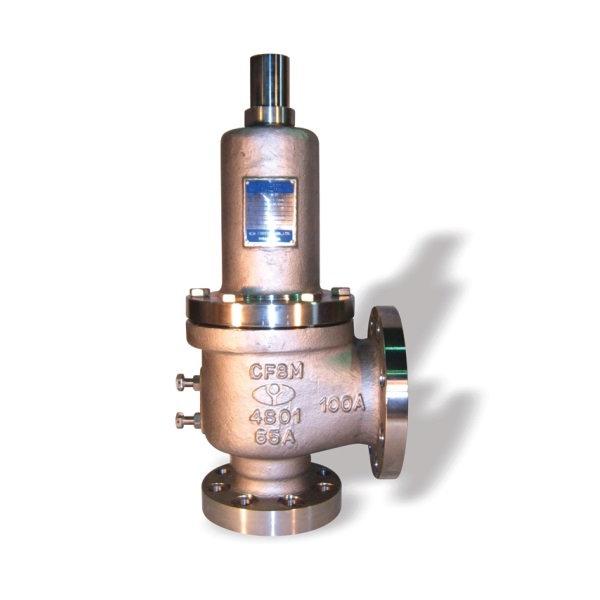

Maker: Yooyoun/ Hàn Quốc Model: SFF-2F Materials: cast steel (A216 WCB) Pressure: 0,35 ~ 22bar Temperature: 250°C Connection: JIS20K, CL150 (#150) Size:

Model: RDST-1S Inlet pressure: 10bar  Outlet pressure: 0.35~8bar  Max. Temp.: 220°C Size: 15A , 20A, 25A, 32A, 40A

Material: Ductile iron Max Temp.: 220°C Inlet pressure: 10bar Outlet pressure: 0.35~8bar Size: 15A, 20A, 25A, 32A, 40A, 50A,

Material: Ductile iron Max Temp.: 220°C Setting pressure: 0.35bar ~ 11bar Size: 15A, 20A, 25A, 32A, 40A, 50A, 65A, 80A, 100A

Model: SFL-3S Material: Stainless steel + Brozne Max. Temp.: 220°C Pressure: 0.35bar ~ 33bar Size: 15A, 20A, 25A, 32A,

Maker: Yooyoun Korea Model: TBK-1S vs TBK-1F  Material: Ductile iron Max Temp.: 220°C Max Presure: 16bar Size

Maker: Yooyoun Korea Model: TDC-1S / TDC-1F Material: Ductile iron Max. Temp.: 220°C Max pressure: 16bar Size
